    kaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitter

    Ask Lasest Price
    Brand Name : kaemeasu
    Model Number : KM-TP
    Certification : CE
    Price : USD$59.5~USD$121 per pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 pcs per month
    Delivery Time : 5-8 days work days
    • Product Details
    • Company Profile

    kaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitter

    Infrared Temperature Transmitter

    kaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitter

    Millisecond response time | Multiple output signal options


    技术指标Specifications:
    测温精度Accuracy≥100℃ ±1%/≤100℃ ±1℃
    测量距离比率(物距比)
    Distance to spot ratio
    (20:1)
    光谱范围
    Spectral response
    8-14μm
    响应时间Response time200ms
    发射率Emissivity(EMS)0.95
    重复精度Repeatability±0.5% or ±0.5℃
    供电电压 PowerDC 12~36V
    模拟输出 Analog output4~20mA/0-5V/0-10V/RS485
    最大电流
    The maximum current
    50mA
    防护等级Protection levelIP56
    环境温度Environmental temperature0~60℃
    存储温度Storage temperature(-20~80℃)
    相对湿度Repeatability10-95%
    隔离Isolation电源,数字输出,模拟输出,都是相互隔离的,互不干扰
    Power, digital output and analog output are isolated and do not interfere with each other.
    外壳Shell material不锈钢Stainless steel
    电缆长度
    Standard wire length
    2m标配 (可定制5m,10m及特殊规格)
    2m (or can be 5m or 10m or other length you need.)
    CE认证符合欧盟抗电磁干扰标准
    With CE approval and protection against electromagnetic disturbance for EU standard.

    kaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitterkaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitterkaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitter

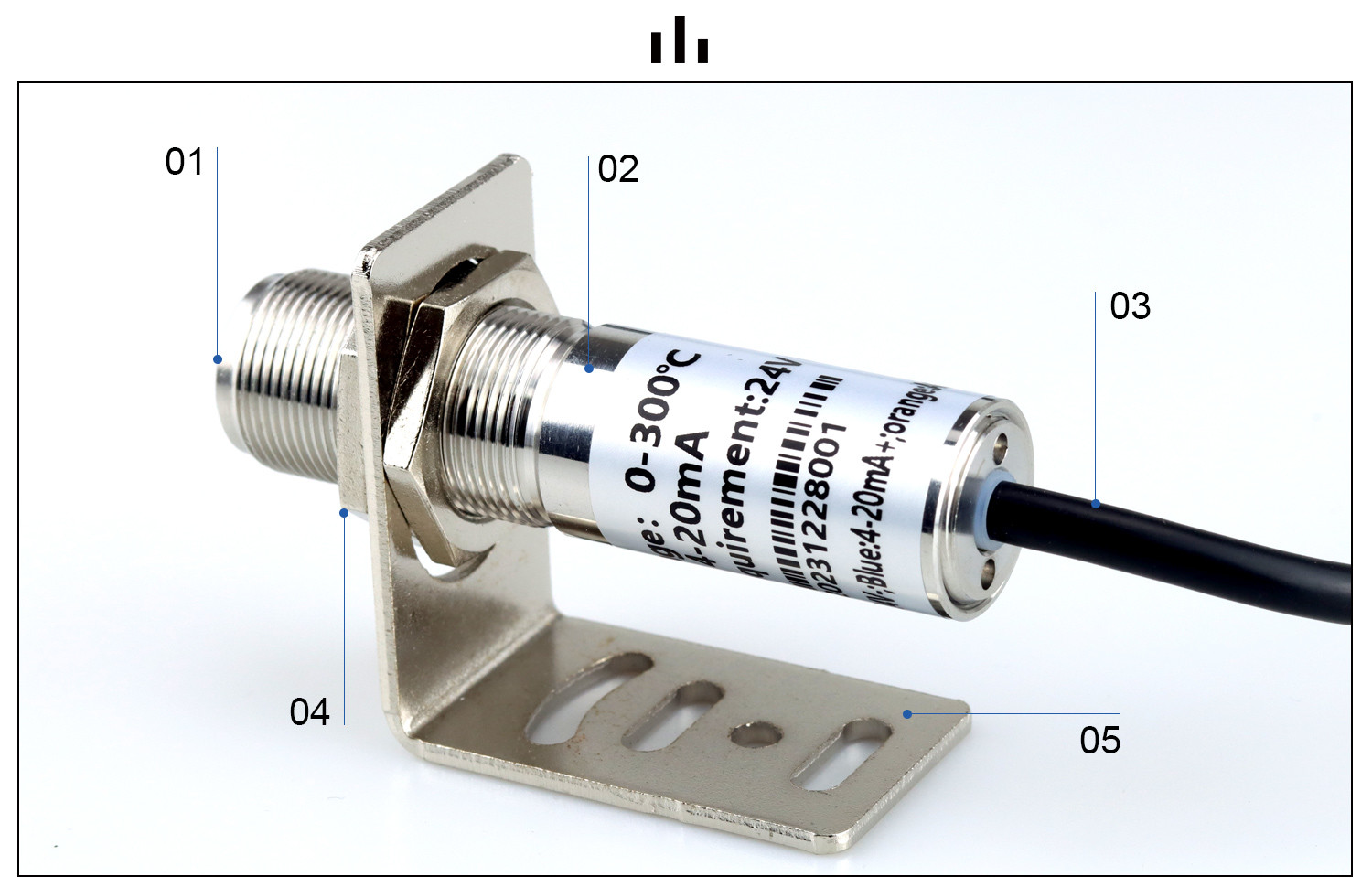

    01:Sensor probes
    02:Internal structure(By optical system, optical detector and other electronic
    circuits integrated)
    03:Quality Cable Wires
    04:Double nut fixing installation
    05:304 stainless steel housing

    kaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitterkaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitter

    Advanced optical lens is used inside.
    It can better receive the infrared radiation of the measured object.
    Measurement is more accurate.

    kaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitterkaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitterkaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitterkaemeasu 4 ~ 20mA Stainless Steel Temperature Sensor Industrial High Temp Infrared Pyrometer Transmitter
